PMC SS-3600 Saw Setter

SS-3600 Saw Setter $750.00

This quick adjusting material stop makes predetermined cuts a breeze, and without sacrificing accuracy.   The 3600 model features pin locations every 1/8 inch up to 36 inches. After initial setup, repeatability and accuracy is + or - .010" over the full length of the setter.  Up to 8ft. lengths are available.  The Saw Setter comes with 2 types of material clamps attached to the opposite side rail to give you more clamping flexibility.  The Saw Setter also comes with a micro-adjustment stop to fine tune those cuts between the 1/8-inch increments.  Add or subtract a 32nd to all cuts at any time. The quick removable carriage allows for longer pieces of material to be cut.  The 6061 aluminum channel is secure to the worktable on each end with an adjustable riser.  The risers have a 1/2 inch height adjustment. Standard height range is from 2.0"-2.5".  The SLS-3600 can be used with standard Slugger saws and also Evolution models S355CPSL, S14CPS, and R355CPS models.  Comes with a 1 yr. limited warranty.





PMC SS-3600 specifications

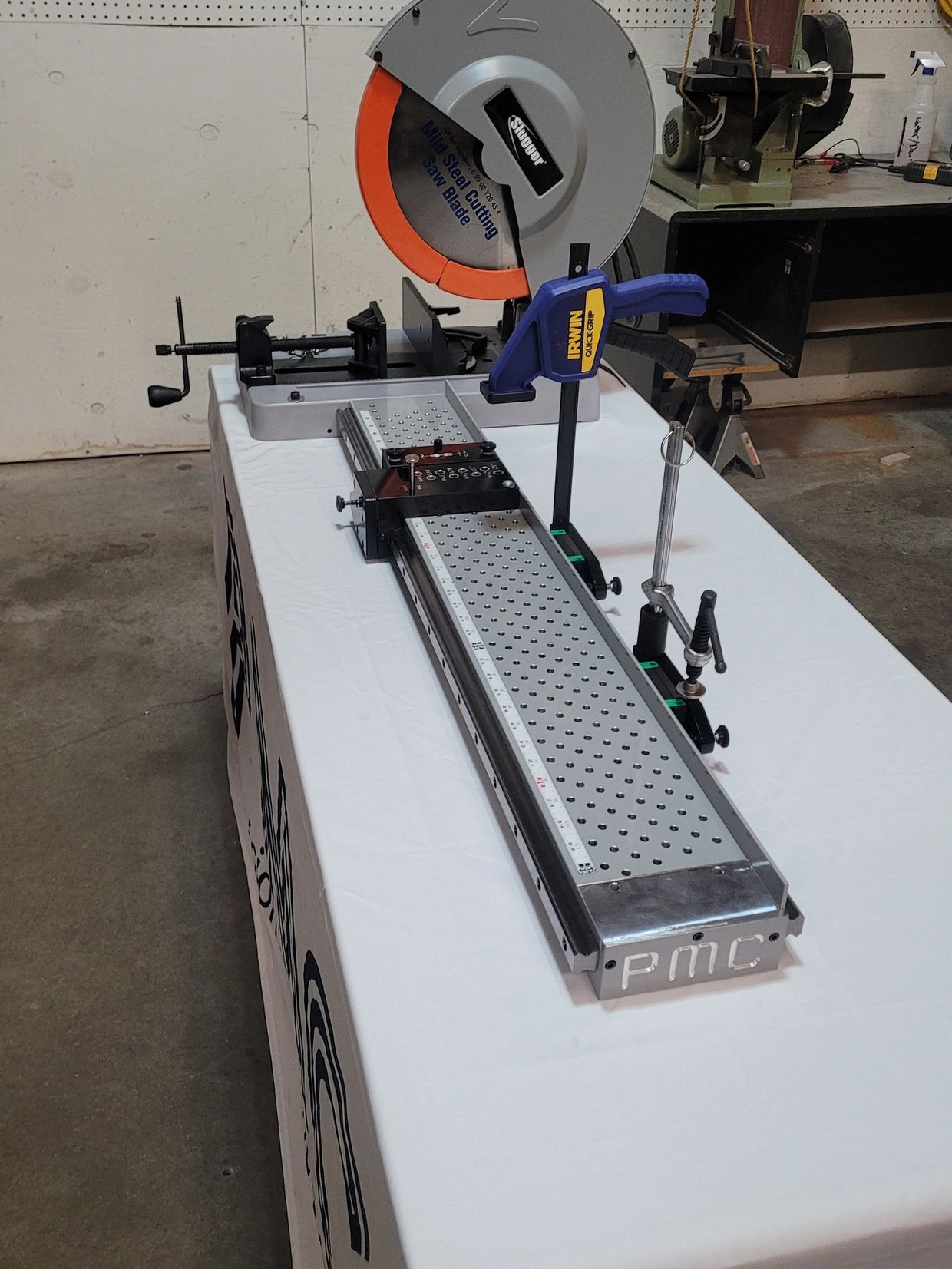

PMC SS-3600 Saw length setter

PMC SS-3600 PHOTO GALLERY
